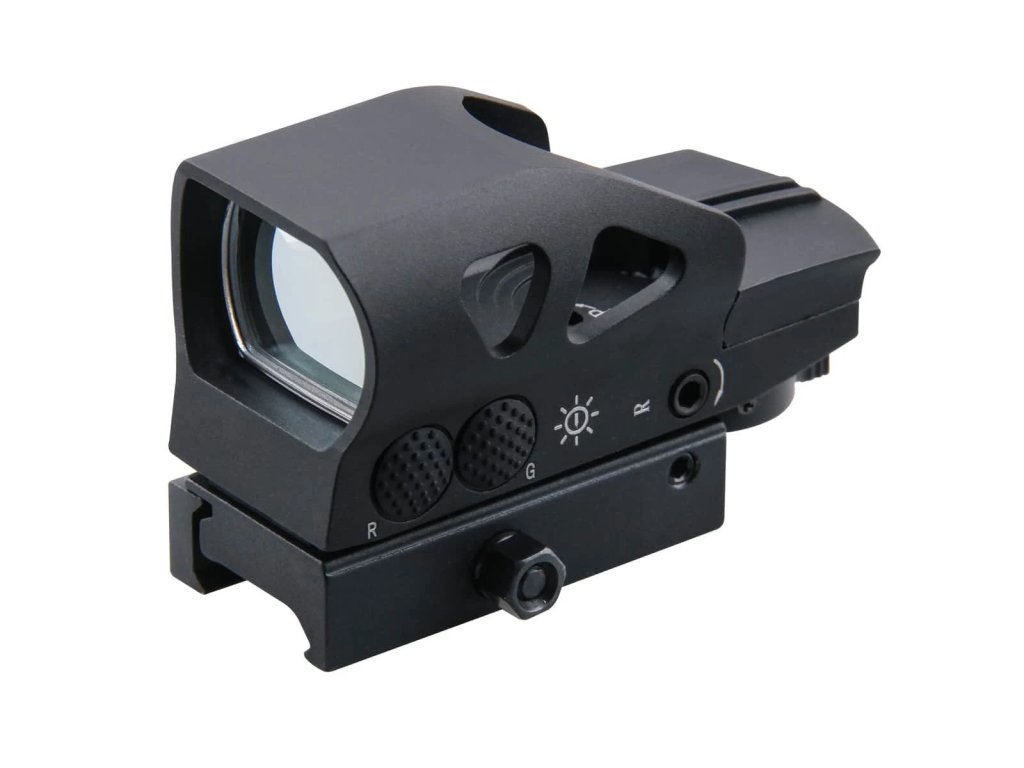

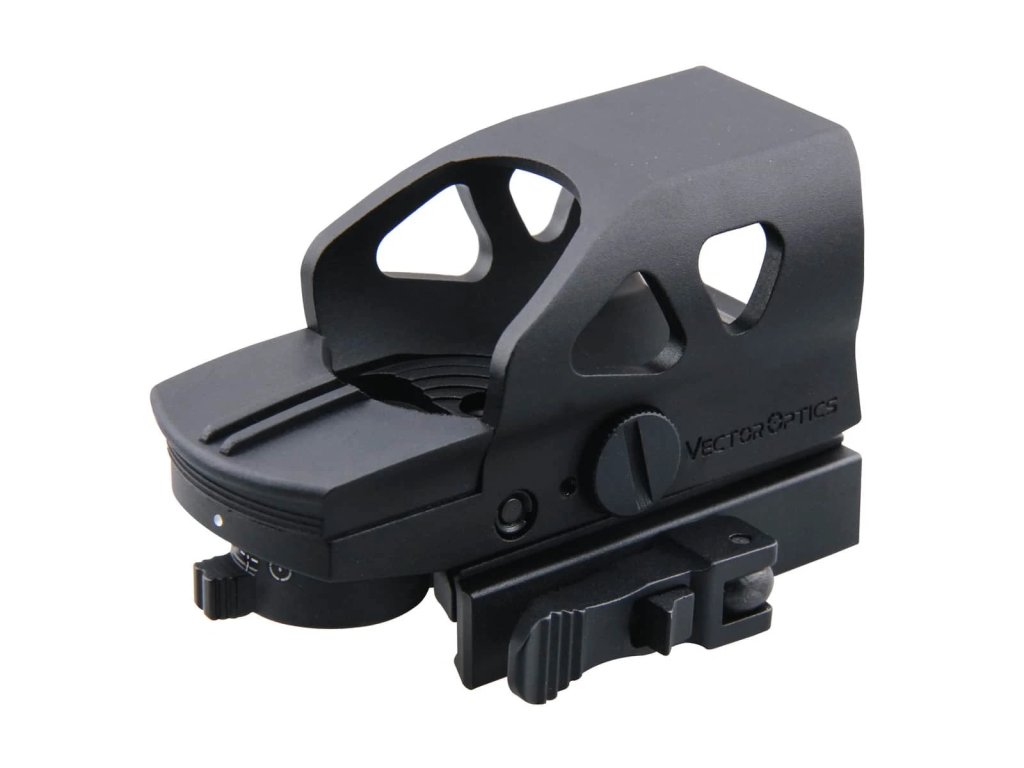

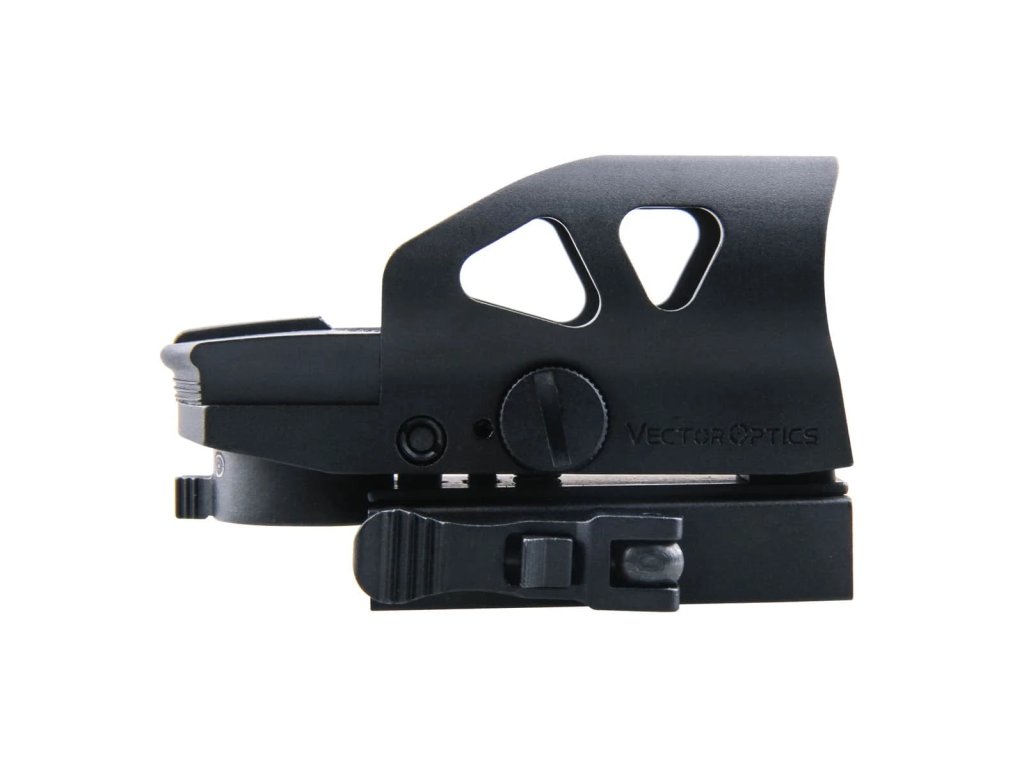

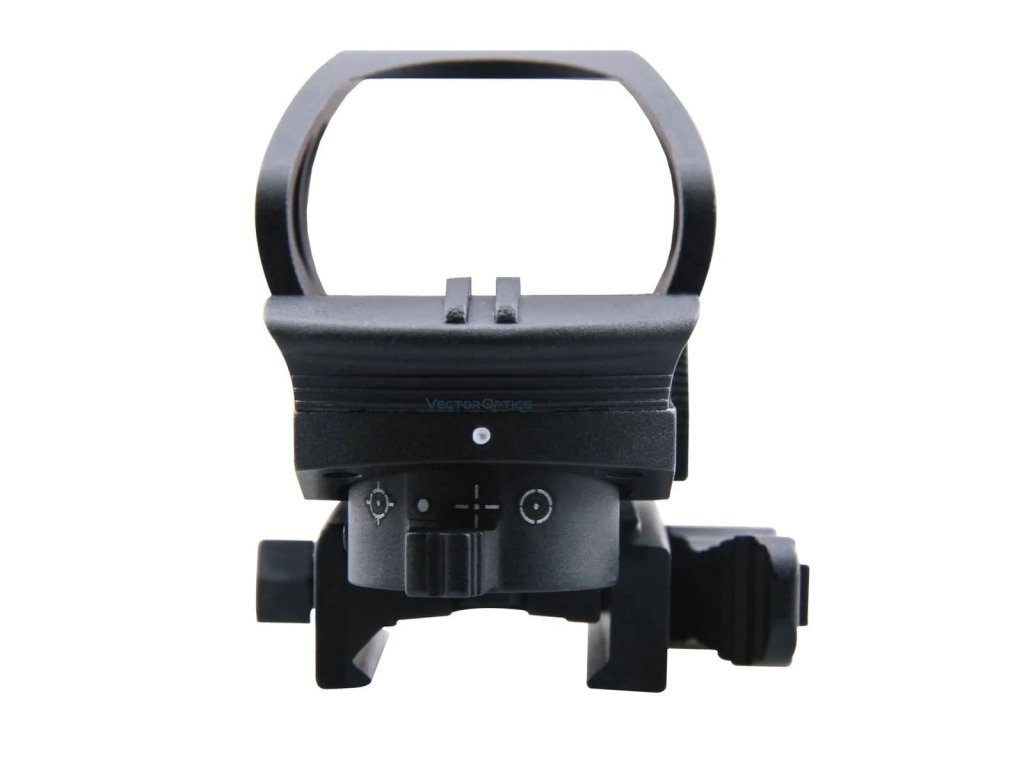

Vector Optics Ratchet 1x23x34 Gen2 R-RGB - Collimator

Product detailed description

Collimator  is suitable for hunters and sport shooters who need to quickly and accurately aim the target (e.g. on chases, target shooting on moving targets). The advantage enabled by the collimator is the preservation of the shooter's natural sight picture and the possibility of shooting where both eyes remain open. This improves visibility of game movement and of course increases shooting safety. The Ratchet 1x23x34 Red, Grenn serves as a tactical sight for quick target acquisition.

Description

The shockproof, rain and fog resistant collimator is made of durable aluminium alloy with a black matt finish. The collimator adapter is designed to be hooked onto a weaver rail. Just use the hex key to change the battery.

Collimator designed for use on weapons with energy up to 4000J (e.g. 308.WIN)

Use

Collimator  is suitable for hunters and sport shooters who need to quickly and accurately aim the target (e.g. on chases, target shooting on moving targets). The advantage enabled by the collimator is the preservation of the shooter's natural sight picture and the possibility of shooting where both eyes remain open. This improves visibility of game movement and of course increases shooting safety.

Adjustment

The Vector Ratchet 1x23x34 Red, Grenn  collimator can be adjusted in two axes horizontally and vertically using an Allen key.

Parameters

Magnification: 1x

A lens without a tube: 23x34mm

Input pupil: 22-23mm

Total length: 82 mm

Width (without fixing level): 30 mm

Height: 48 mm

Weight (net): 140 g

Field of view at 100m: 15,7 m

Optics: Multi Coated

Brightness levels: 5

Parallax: 1 MOA at 80 yards

Correction range: 60 MOA

Front switch for red point and rear switch for green point

Intended point: 4 species.

Changing the aiming point with an audible click

Shockproof, waterproof

5 brightness levels for green and red.

Press for 3 seconds to switch off the device

High quality aluminium alloy in durable matt black finish

Mounting on weaver rail

Batteries3x LR754 Not included

Contents of the package

• Imbus
• Adapter for weaver
• Cleaning cloth
